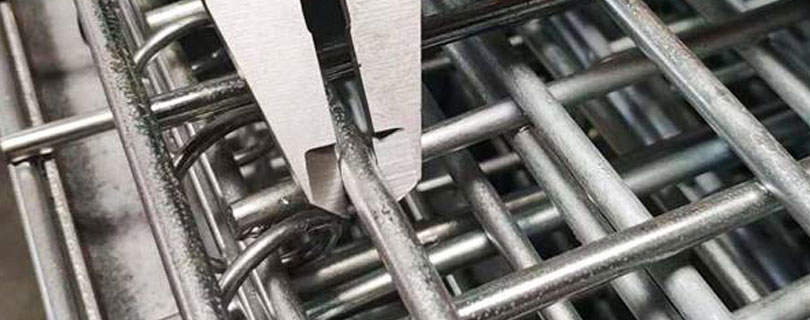

Nickel 200 Wire Mesh

ASTM B160 UNS N02200 Hexagonal Wiremesh Manufacturer

Nickel 200 Wire Mesh

Nickel 200 Wire Mesh

Top notch 200 Alloy Bright Wire Manufacturer, Leading ASTM B160 Nickel 200 Wire mesh Supplier

Specification of Nickel 200 Wire

Dimension of WNR 2.4066 Coil Wire

Chemical Composition of 200 Alloy Bright Wire

Mechanical Properties of ASTM B160 Nickel 200 Wire mesh

Equivalent Grade of ASME SB160 Alloy 200 Coil Wire

Specification of Nickel 200 Wire
Standard DIN, ASTM, BS and all International Standards
Length 30m to 100″
Width 1m to 48″
Type Wire Mesh , Hexagonal Wiremesh, Welding Wiremesh, Netting Wiremesh, Woven Wiremesh , Spring Steel wire mesh, Fencing Wiremesh etc.

Dimension of WNR 2.4066 Coil Wire
Mesh SWG DIAMETERS OF WIRE SIZE OF OPENING Approx Percentage Open Area
Inch MM Inch MM Micron
4 12 0.104 2.640 0.146 3,710 3,710 34.14
4 13 0.092 2.340 0.158 4,010 4,010 39.98
4 14 0.080 2.030 0.170 4,320 4.320 46,28
4 15 0.072 1.830 0.178 4,520 4,520 50.67
4 16 0.064 1.630 0.186 4,720 4,720 55.25
4 17 0.056 1.430 0.194 4,920 4,920 60.03
4 18 0.048 1.220 0.202 5,130 5,130 65.27
5 14 0.080 2.030 0.120 3,050 3,050 36.05
5 15 0.072 1.830 0.128 3,250 3,250 40.93
5 16 0.064 1.630 0.136 3,450 3,450 46.12
5 17 0.056 1.430 0.144 3,650 3650 51.62
5 18 0.048 1.220 0.152 3,860 3,860 57.74
5 19 0.040 1.020 0.160 4,060 4,060 63.87
5 20 0.036 0.910 0.164 4,170 4,170 67.38
6 16 0.064 1.630 0.102 2,603 2,603 37.82
6 17 0.056 1.430 0.110 2,803 2,803 43.85
6 19 0.040 1.020 0.127 3,213 3,213 57.62
6 20 0.036 0.910 0.131 3,323 3,323 61.63
6 21 0.032 0.810 0.135 3,423 3,423 65.39
8 16 0.064 1.630 0.061 1,545 1545 23.68
8 17 0.056 1.430 0.061 1,745 1,745 30.21
8 18 0.048 1.220 0.077 1,955 1,955 37.91
8 19 0.040 1.020 0.085 2,155 2,155 46.07
8 20 0.036 0.910 0.089 2,265 2,265 50.89
8 21 0.032 0.810 0.093 2,365 2,365 55.48
8 22 0.028 0.710 0.097 2,465 2,465 60.28
8 23 0.024 0.610 0.0101 2,565 2,565 65.27
8 24 0.022 0.550 0.103 2,625 2,625 68.36
8 25 0.020 0.500 0.105 2,675 2,675 70.98
10 20 0.036 0.910 0.064 1,630 1,630 41.18
10 21 0.032 0.810 0.068 1,730 1,730 46.39
10 22 0.028 0.710 0.072 1,830 1,830 51.91
10 23 0.024 0.610 0.076 1,930 1,930 57.74
10 24 0.022 0.550 0.078 1,990 1,990 61.38
10 25 0.020 0.500 0.080 2,040 2,040 64.50
12 22 0.028 0.710 0.055 1,407 1,407 44.16
12 23 0.024 0.610 0.059 1,507 1,507 50.67
12 24 0.022 0.550 0.062 1,567 1,567 54.78
12 25 0.020 0.500 0.064 1,617 1,617 58.34
12 26 0.018 0.450 0.066 1,667 1,667 62.00
14 24 0.022 0.550 0.050 1,264 1,264 48.56
14 25 0.020 0.500 0.052 1,314 1,314 52.48
14 26 0.018 0.450 0.054 1,364 1,364 56.55
14 27 0.016 0.400 0.056 1,414 1,414 60.77
14 28 0.015 0.370 0.057 1,444 1,444 63.37
16 24 0.022 0.550 0.041 1,038 1,038 42.71
16 25 0.020 0.500 0.043 1,088 1,088 46.93
16 26 0.018 0.450 0.045 1,138 1,138 51.34
16 27 0.016 0.400 0.047 1,188 1,188 55.96
16 29 0.013 0.340 0.049 1,248 1,248 61.75
16 30 0.012 0.310 0.050 1,278 1,278 64.76
18 25 0.020 0.500 0.036 0.911 911 41.69
18 26 0.018 0.450 0.038 0.961 961 46.39
18 27 0.016 0.400 0.040 1.011 1,011 51.34
18 28 0.015 0.370 0.041 1.041 1,041 54.43
20 24 0.022 0.550 0.028 0.720 720 32.14
20 25 0.020 0.500 0.030 0.770 770 36.76
20 26 0.018 0.450 0.032 0.820 820 41.69
20 27 0.016 0.400 0.034 0.870 870 46.93
20 28 0.015 0.370 0.035 0.900 900 50.22
20 29 0.013 0.340 0.037 0.930 930 53.62
20 30 0.012 0.310 0.038 0.960 960 57.14
24 27 0.016 0.400 0.026 0.658 658 38.69
24 28 0.015 0.370 0.027 0.688 688 42.30
24 29 0.013 0.340 0.028 0.718 718 46.07
24 30 0.012 0.310 0.029 0.748 748 50.00
24 32 0.011 0.270 0.031 0.788 788 55.48
30 28 0.015 0.370 0.019 0.477 477 31.70
30 29 0.013 0.340 0.020 0.507 507 35.81
30 30 0.012 0.310 0.021 0.537 537 40.18
30 31 0.011 0.290 0.022 0.557 557 43.23
30 32 0.011 0.270 0.023 0.557 577 46.39
40 32 0.011 0.270 0.014 0.365 365 33.04
40 33 0.010 0.250 0.015 0.385 385 36.76
40 34 0.009 0.234 0.016 0.401 401 39.88
40 35 0.008 0.210 0.017 0.425 425 44.80
40 36 0.008 0.193 0.017 0.442 442 48.45
50 34 0.009 0.234 0.011 0.274 274 29.09
50 35 0.008 0.210 0.012 0.298 298 34.41
50 36 0.008 0.193 0.012 0.315 315 38.45
50 37 0.007 0.172 0.013 0.336 336 43.75
50 38 0.006 0.152 0.014 0.356 356 49.11
60 36 0.008 0.193 0.009 0.230 230 29.60
60 37 0.007 0.172 0.010 0.251 251 32.25
60 38 0.006 0.152 0.011 0.271 271 41.08
80 38 0.006 0.152 0.007 0.166 166 21.17
80 39 0.005 0.130 0.007 0.188 188 34.88
80 40 0.005 0.122 0.008 0.196 196 37.91
80 41 0.004 0.112 0.008 0.206 206 41.89
80 42 0.004 0.102 0.008 0.216 216 46.07
100 42 0.004 0.102 0.006 0.152 152 35.81
100 43 0.004 0.091 0.006 0.163 163 41.18
100 44 0.003 0.081 0.007 0.173 173 46.39
120 44 0.003 0.081 0.005 0.131 131 38.11
150 45 0.003 0.071 0.004 0.098 98 33.72
150 45.5 0.002 0.063 0.004 0.106 106 39.43
200 47 0.002 0.050 0.003 0.077 77 36.76
250 48 0.002 0.040 0.002 0.062 62 36.76
300 48 0.002 0.040 0.002 0.045 45 27.83
325 48.5 0.001 0.035 0.002 0.043 43 30.49
400 49.5 0.001 0.028 0.001 0.036 36 31.25
500 50 0.001 0.025 0.001 0.026 26 25.79

Chemical Composition of 200 Alloy Bright Wire
Nickel 200 Ni C Mo Mn Si Fe P S Cu Cr
99.0 min 0.15 max – 0.35 max 0.1 max 0.4 max – 0.01 max 0.25 max –

Mechanical Properties of ASTM B160 Nickel 200 Wire mesh
Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.9 g/cm3 1446 °C (2635 °F) Psi – 21500 , MPa – 148 Psi – 67000 , MPa – 462 45 %

Equivalent Grade of ASME SB160 Alloy 200 Coil Wire
STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Nickel 200 N02200 2.4066 N-100M Ni 99.2 NW 2200 NA 11 НП-2

Top notch Stockholder of UNS N02200 Wire, Distributor of ASME SB160 Alloy 200 Coil Wire, Reliable Stockist of 200 Nickel Bright Wire
